Technical parameter

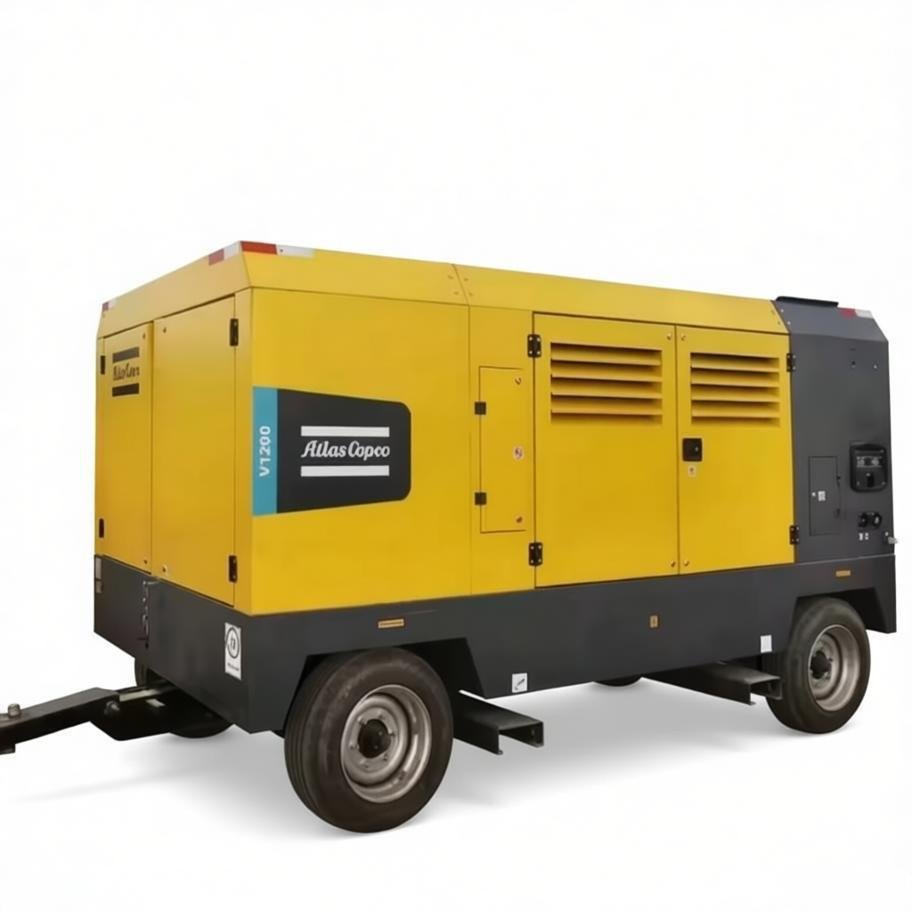

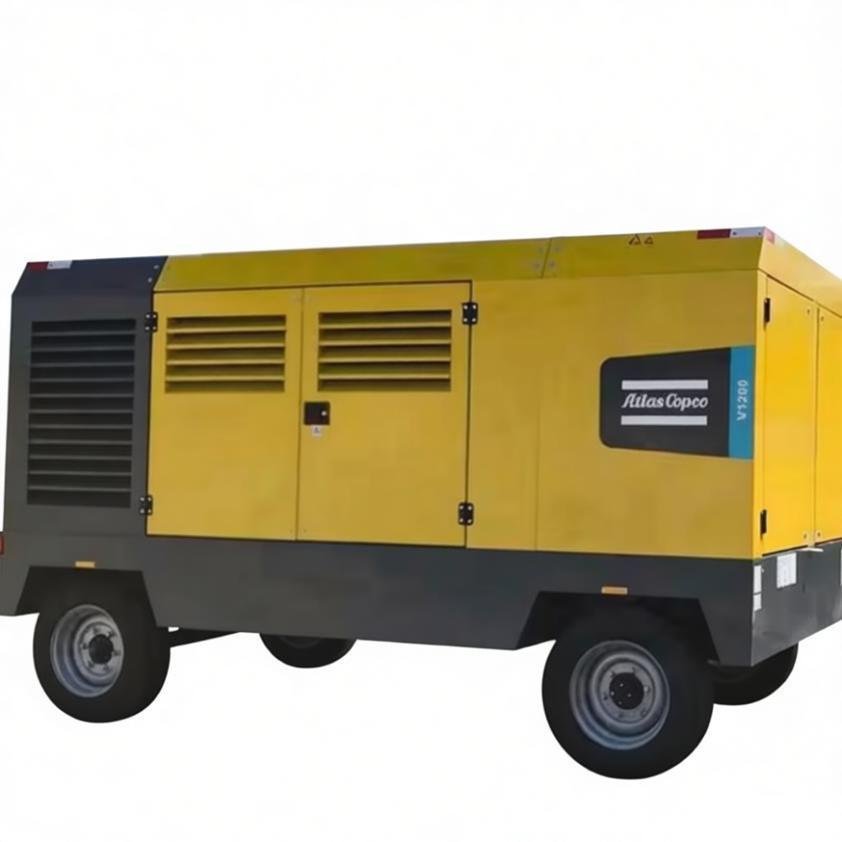

| Air compressor model number | V1200 | X1300 | Y1300 | Y1200 | Y1260 | |
| Maximum working pressure | bar(g) | 15-25 | 13-30 | 15-35 | 15-35 | 15-35 |
| displacement | m3/min | 36.3-33.9 | 38.8-35.3 | 36.5-32.3 | 38.6-32.3 | 41.2-34.7 |
| Air compressor oil capacity | L | 89 | 87.8 | 87.8 | 82 | 82 |
| Tank volume | L | 700 | 876 | 876 | 975 | 975 |
| Gas ball valves | 1×2″ | |||||
| Engine | ||||||
| model | QSZ13-C475-30 | QSZ13-C550-30 | QSZ13-C550-30 | CAT C15 ACERT GIII | CAT C18 ACERT GIII | |
| power | kw | 364 | 410 | 410 | 403 | 429 |
| Engine speed (full load) | rpm | 1700/1600 | 1850/1700 | 1900/1700 | 1950/1650 | 1950/1650 |
| Engine speed (unloading) | rpm | 1200 | 1300 | 1300 | 1300 | 1300 |
| Dimensions (length X width X height) | ||||||
| Trailers | mm | 5000X2100X2385 | 5000X2300X2600 | 5000X2250X2510 | 5400X2250X2510 | |
| Box type | mm | 4100X2100X2177 | 4200X2300X2270 | 4210X2250X2270 | 4560X2250X2270 | |
| Air compressor weight | ||||||
| Trailers | kg | 5555 | 7020 | 7150 | 7450 | 7670 |
| Box type | kg | 4900 | 6350 | 6500 | 6800 | 7020 |
| Noise sound power level (LWA) | dB(A) | 105 | 109 | |||
