Product Features
Robust Performance
• Designed for 100% continuous operation, ensuring uninterrupted performance under heavy workloads.
• Operates reliably in ambient temperatures up to 46°C (115°F), ideal for demanding industrial environments.
• Features a belt-driven airend for exceptionally quiet operation, minimizing noise pollution.
• Full-featured models include an integrated refrigerant dryer and filtration system, delivering clean, dry air in a single compact unit.
Simple Installation & Maintenance

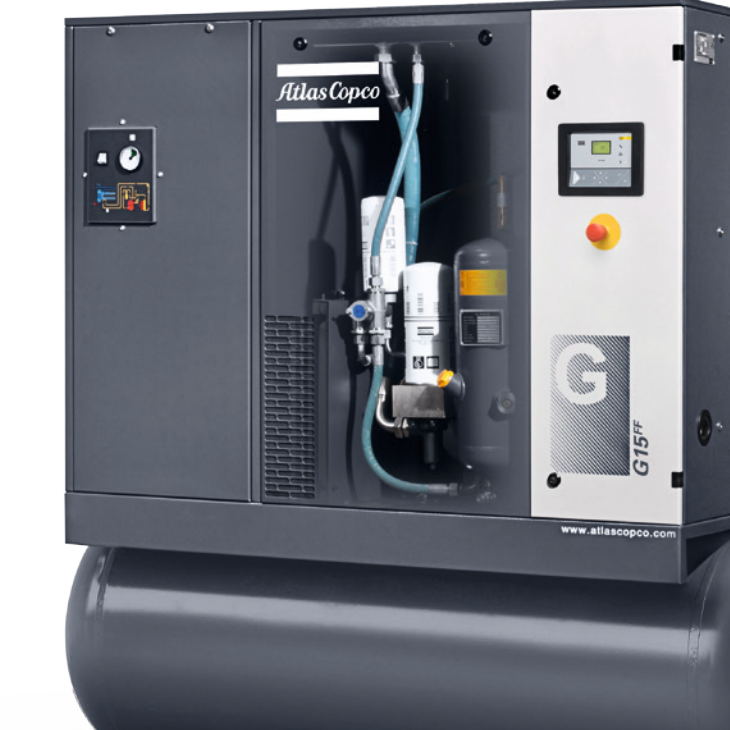

• Available in multiple configurations—floor-mounted or tank-mounted—to suit various installation needs.
• Compact design with a minimal footprint allows placement against walls or in corners, optimizing space utilization.
• Key components such as the oil separator and filters are easily accessible, enabling quick inspections and routine maintenance with minimal downtime.
Easy Monitoring & Control
• Intuitive icon-based display provides clear visibility of pressure settings, temperature readings, and system status.
• Tracks total running hours and loaded operating time, supporting proactive maintenance planning.
• Automatic service alerts notify users of upcoming maintenance needs, helping prevent unexpected failures.
• Outlet pressure can be adjusted directly on the controller for fast, precise control.
• Real-time monitoring of system pressure and airend discharge temperature ensures safe and efficient operation.
Technical specifications
| Compressor type | Max. working pressure | Capacity FAD* | Installed motor power | Noise level** | Weight*** | |||||||||
| WorkPlace | WorkPlace Full Feature | FM | FM FF | TM | TM FF | |||||||||
| bar(e) | psig | bar(e) | psig | l/s | m³/hr | cfm | kW | hp | dB(A) | kg | kg | kg | kg | |
| 50 Hz VERSION | ||||||||||||||
| G 15L | ||||||||||||||
| 7.5 | 7.5 | 108.8 | 7.3 | 105 | 42.5 | 153 | 90.1 | 15 | 20 | 67 | 313 | 371 | 537 | 595 |
| 10 | 10 | 145 | 9.8 | 141 | 38.5 | 138.6 | 81.6 | 15 | 20 | 67 | 313 | 371 | 537 | 595 |
| 13 | 13 | 188.5 | 12.8 | 185 | 31.2 | 112.3 | 66.1 | 15 | 20 | 67 | 313 | 371 | 537 | 595 |
Floor-mounted units (FM), including standard FM and enhanced FM FF (Full Feature) models, as well as tank-mounted configurations (TM and TM FF), are evaluated for performance in compliance with ISO 1217, Edition 4 (2009), Annex C, latest revision. Sound levels are determined using the sound intensity method per ISO 9614-2, following ISO 2151:2004, with measurements taken at a 1-meter distance from the unit. A tolerance of ±3 dB(A) applies to the declared noise values.
