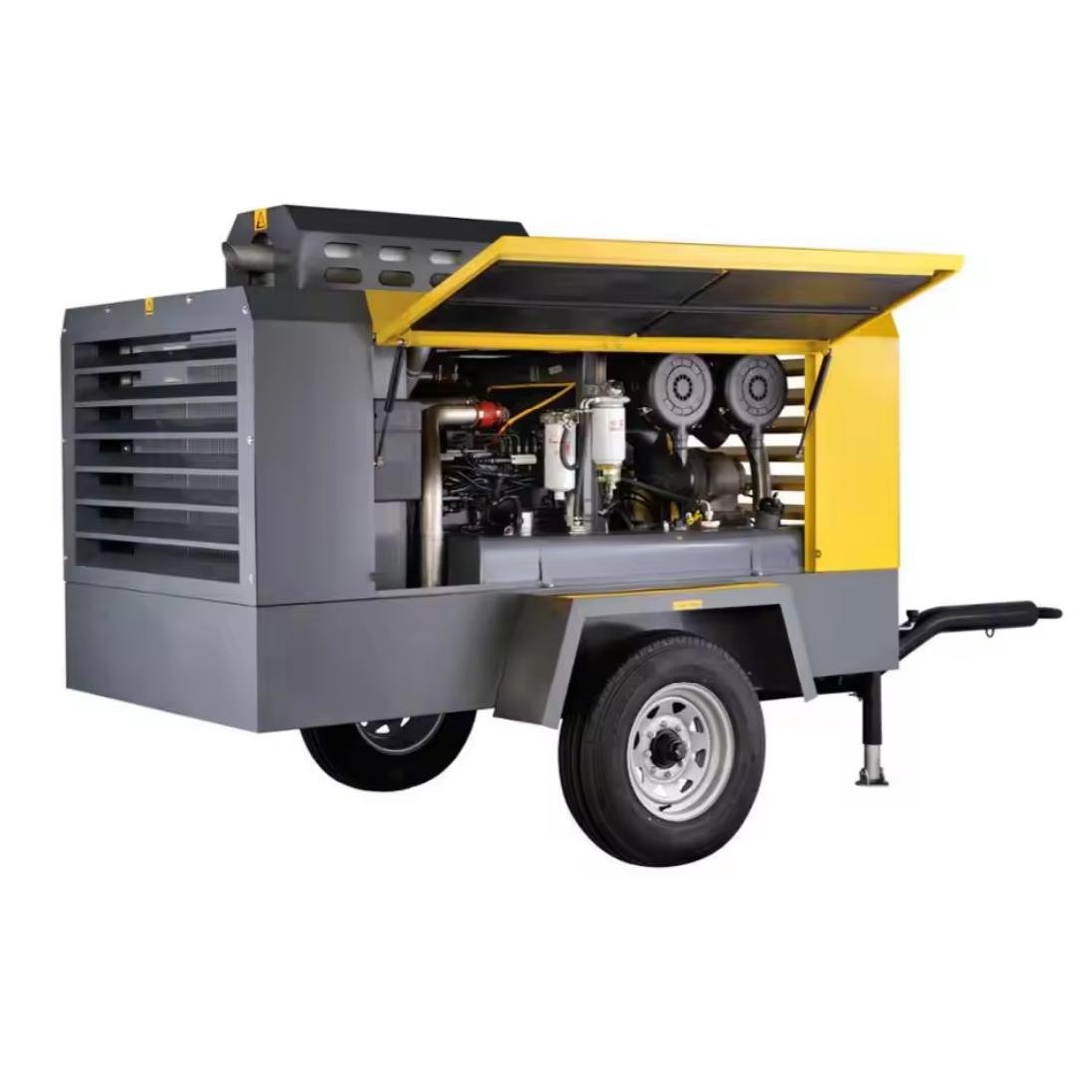

This series of air compressors features screw rotors engineered by Atlas Copco, ensuring proven reliability and quality. The distinctive rotor profile design offers robust performance and durability, delivering high efficiency with low energy consumption. The entire system integrates Cummins’ nationally recognized three-row high-pressure common rail technology, which significantly reduces fuel usage and emissions.
With a well-balanced range of pressure and airflow combinations, the series boasts a scientifically sound and dependable design, capable of withstanding the demands of diverse operating environments and challenging industrial applications.
Technical parameter

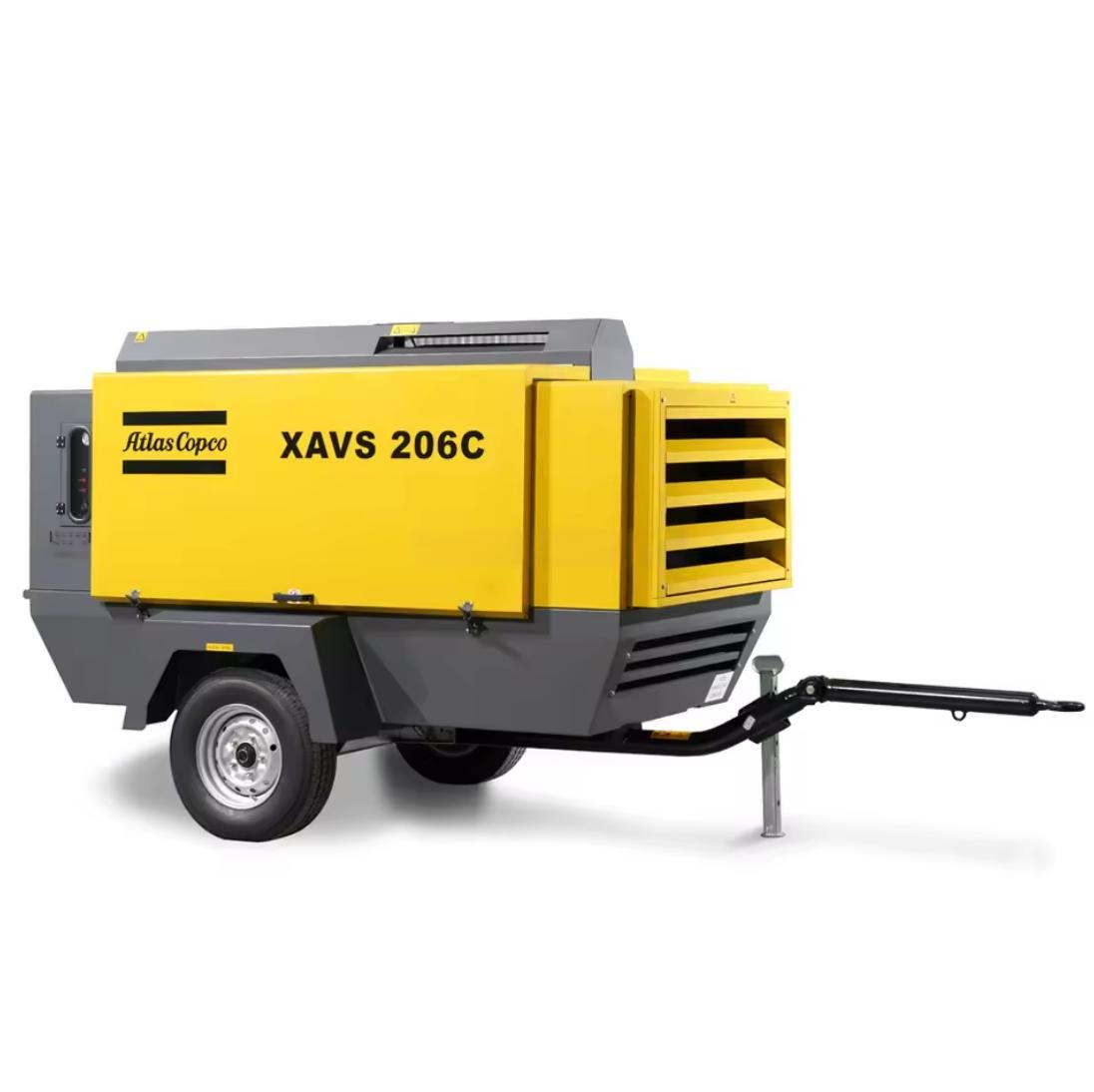

| Air compressor model number | XATS156C | XAHS166C | XAS186C | XAVS206C | XAVS236C | |
| Displacement | m3/min | 10 | 10 | 11.5 | 12.5 | 14.3 |
| Rated working pressure | bar(g) | 10.3 | 12 | 7 | 14 | 14 |
| Compressed series | 1 | |||||
| Air compressor oil volume | L | 23 | 25 | 25 | 29 | 47 |
| Storage tank volume | L | 42 | 42 | 67 | ||
| Diesel tank capacity | L | 175 | 185 | 185 | ||
| The noise level | dB(A) | 80±3 80±3 80±3 | ||||
| Engine manufacturer | Cummins | |||||
| Model | QSB3.9-C130 | QSB5.9-C180 | QSB5.9-C210 | |||
| Number of cylinders | 4 | 6 | 6 | |||
| Output power at rated speed | Kw | 95 | 132 | 152 | ||
| Maximum engine speed (full load) | rpm | 2300 | 2400 | 2000 | ||
| Minimum engine speed (unloaded) | rpm | 1700 | 1200 | 1200 | ||
| Lubricating oil system capacity | L | 10 | 14.2 | 14.2 | ||
| Coolant system capacity | L | 20 | 30 | 31 | ||
| Size | ||||||
| Machine Length (trailer type) | mm | 4120 | 4140 | 4230 | ||
| The whole machine width | mm | 1900 | 1940 | 1940 | ||
| The machine is highly | mm | 2000 | 2156 | 2156 | ||
| Overall operating weight | Kg | 1680 | 2000 | 2250 | ||
| Exhaust valve | Quantity x dimension | 1×11/2”,1×3/4‘’ | 1×11/2”,1×3/4‘’ | 1×2”,1×3/4‘’ | ||
