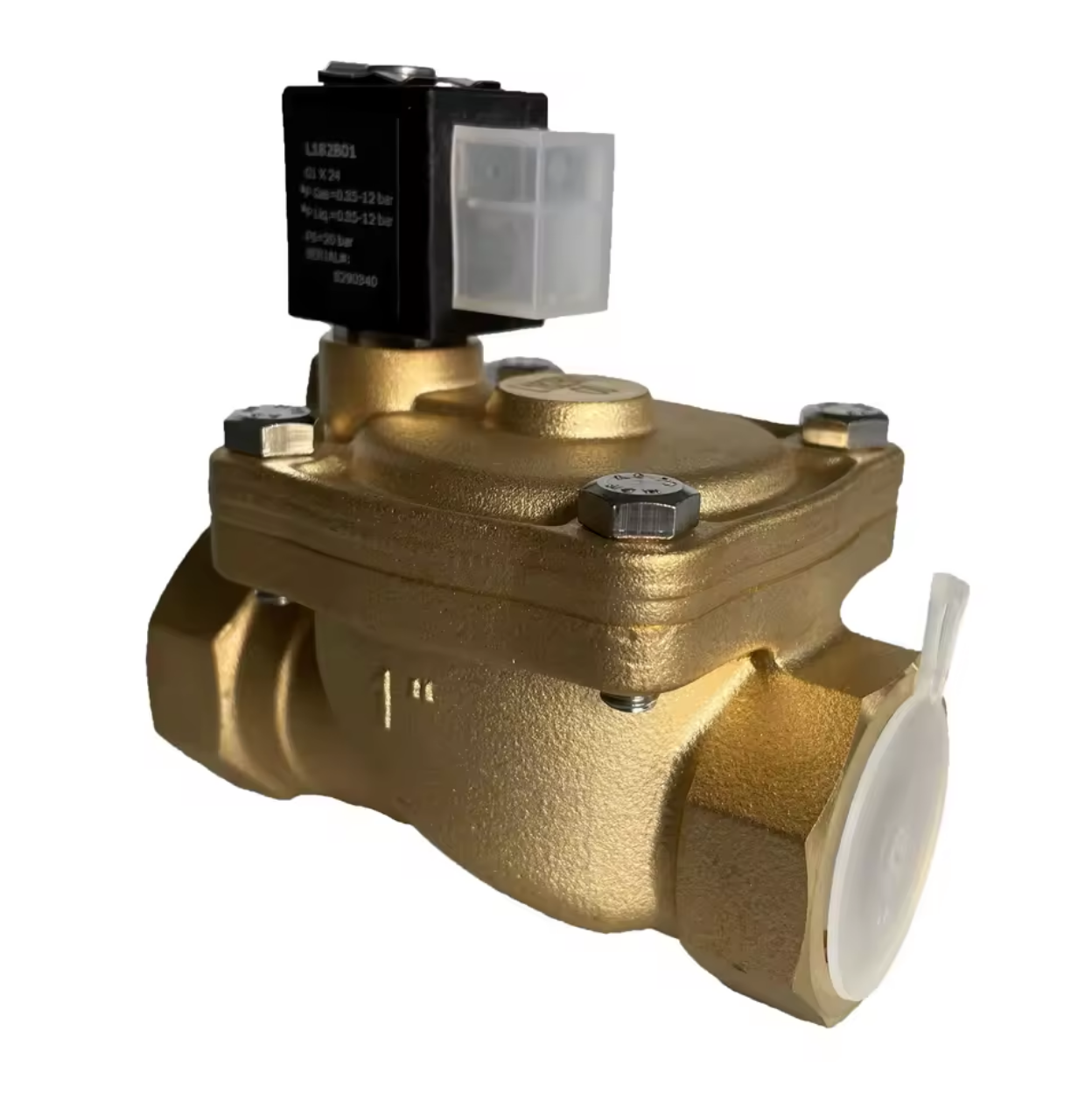

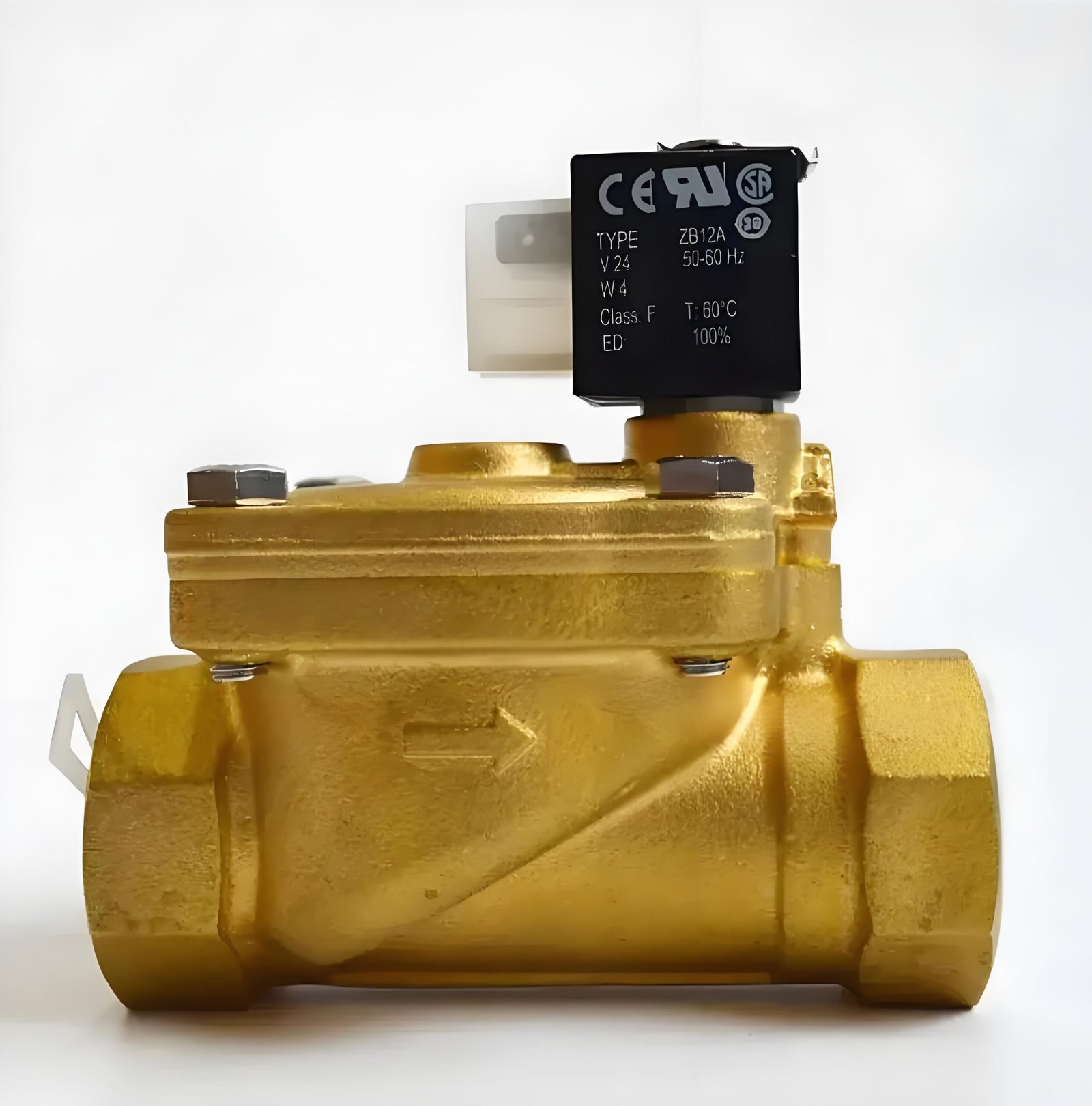

| Product name |
Solenoid Valve |
| Brand name |
Atlas copco |
| Part number |
1089064116 |
| Type |
ZB12A |
| Voltage |
24V |
| TEMP |
60℃ |
| Applicable models |
Used for intak valve (1092130400) |
Extensive Inventory Available – Contact Us with Your Model or Part Number
We maintain a substantial stock of air compressor components. To ensure rapid service, please provide the specific machine model or product part number when making an inquiry.
Solenoid Valve Failure Analysis & Troubleshooting Guide
Scenario A: Valve Fails to Operate When Energized
- Power & Pressure Check: Verify that power wiring connections are secure and that the system operating pressure is within the specified range.
- Mechanical Obstruction: Inspect for debris or impurities that may be jamming the main spool, preventing movement.
- Electrical Integrity: Test the coil for potential short circuits or burnout.
Scenario B: Valve Fails to Close Properly
- Installation Orientation: Confirm the valve is installed in the correct flow direction, as solenoid valves are directional.
- Seal & Vent Inspection: Check the pressure-equalizing hole (or vent) on the valve seal for blockages or physical damage.
