Across industries—from hospital central vacuum systems and CNC routing to pneumatic conveying and milking parlors—the need for reliable vacuum is universal. Atlas Copco delivers this essential utility with unmatched safety, consistency, and cost-efficiency. By connecting with Atlas Copco, you gain more than equipment—you empower your processes, enhance operational control, and boost productivity through intelligent vacuum solutions.
Manufactured in Antwerp, tens of thousands of Atlas Copco claw pumps are already operating quietly and efficiently worldwide. Built for longevity, these pumps maintain a low failure rate even under extreme conditions, ensuring stable performance across diverse industrial environments.
Atlas Copco’s leadership in claw technology stems from deep expertise. The acquisition of Edwards—the pioneer of claw vacuum technology in high-tech electronics—combined with Atlas Copco’s own breakthrough in multi-claw compressor design, has created a powerful synergy. This fusion of knowledge delivers durable, high-efficiency, and cost-effective dry vacuum solutions.
Atlas Copco’s dry claw pumps meet rigorous international standards: ISO 9001 (quality), ISO 14001 (environment), and OHSAS 18001 (safety), all verified by Lloyd’s Register. Backed by a market-leading warranty and a service network spanning 180 countries, they offer round-the-clock assurance that your operations remain in optimal condition.
Dry (Oil-Free) Operation
Eliminates oil contamination risks—ideal for clean, sensitive, or regulated environments.
Variable Speed Drive (VSD) Compatibility
Set-Point Control Option
Precisely maintains required vacuum levels with minimal flow, eliminating energy waste and ensuring process accuracy.
Simple, Low-Maintenance Design
Robust Corrosion Resistance (Standard)

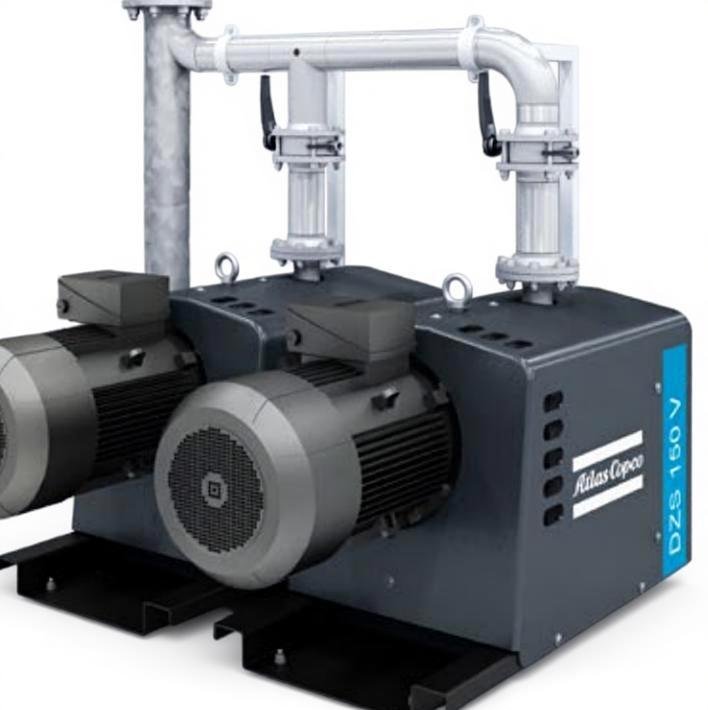

Compact Footprint, Flexible Integration
Small size makes units ideal for retrofitting into existing compressor rooms, replacing legacy systems, or integrating into OEM machinery.
User-Friendly Element Design

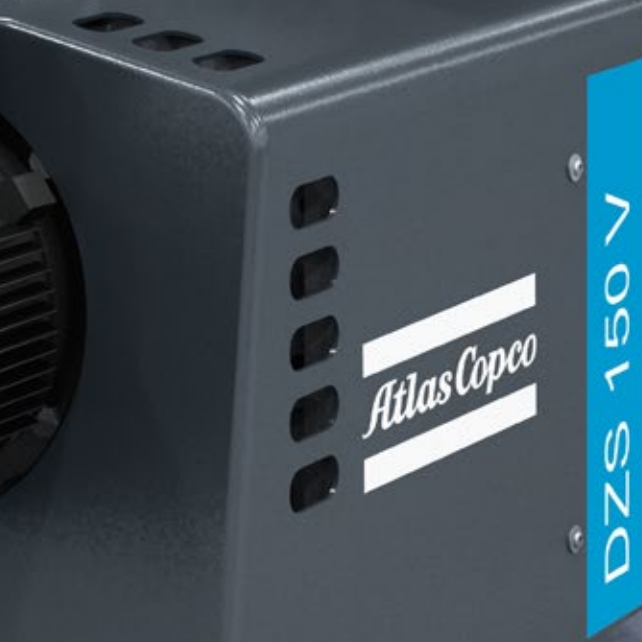

Technical specifications – DZS mono-claw
Vacuum
| Type | Nominal displacement | Ultimate vacuum level ‘V’ version | Permissible ambient temperature range | Inlet connection size | Oulet connection size | Shaft power | |||||
| m³/h | cfm | mbar(a) | “Hg Vac | Torr | °C | °F | BSP | BSP | kW | hp | |
| DZS 065 V – 50 Hz | 65 | 38 | 50 | 28.3 | 37.5 | 0 to 40 | 32 to 104 | G 1 1/4″ | G 1 1/4″ | 1.8 | 2 |
| DZS 065 V – 60 Hz | 78 | 47 | 50 | 28.3 | 37.5 | 0 to 40 | 32 to 104 | G 1 1/4″ | G 1 1/4″ | ||
| DZS 150 V – 50 Hz | 150 | 88 | 50 | 28.3 | 37.5 | 0 to 40 | 32 to 104 | G 1 1/4″ | G 1 1/4″ | 3.7 | 5 |
| DZS 150 V – 60 Hz | 180 | 104 | 50 | 28.3 | 37.5 | 0 to 40 | 32 to 104 | G 1 1/4″ | G 1 1/4″ | 3.7 | 5 |
| DZS 300 V – 50 Hz | 300 | 176 | 140 | 25.8 | 105 | 0 to 40 | 32 to 104 | G 2″ | G 1 1/4″ | 6.2 | 8.3 |
| DZS 300 V – 60 Hz | 360 | 208 | 140 | 25.8 | 105 | 0 to 40 | 32 to 104 | G 2″ | G 1 1/4″ | 7.5 | 10 |
60Hz Versions supplied with NPT adaptorsPumping speed based on air at 20°C. Tolerance +/-10%.
Low Pressure
| Type | Nominal displacement | Ultimate pressure ‘P’ version | Permissible ambient temperature range | Inlet connection size | Shaft power | ||||
| m³/h | cfm | bar(g) | psi(g) | °C | °F | BSP | kW | hp | |
| DZS 150 P – 50Hz | 150 | 90 | 2.5 | 36 | 0 to 40 | 32 to 104 | G 1 1/4″ | G 1 1/4″ | 11.0 |
| DZS 150 P – 60Hz | 180 | 104 | 2.5 | 36 | 0 to 40 | 32 to 104 | G 1 1/4″ | G 1 1/4″ | 15.0 |
| DZS 300 P – 50Hz | 300 | 180 | 2.5 | 36 | 0 to 40 | 32 to 104 | G 2″ | G 1 1/4″ | 19.0 |
| DZS 300 P – 60Hz | 360 | 208 | 2.5 | 36 | 0 to 40 | 32 to 104 | G 2″ | G 1 1/4″ | 22.0 |
Weight tolerance (oil included) +/- 2kg/4.4lbsDimensional tolerance +/-10mm/0.4″
Dimensions & weight
Pumping speed based on air at 20°C. Tolerance +/-10%.
60Hz Versions supplied with NPT adaptors
