Roto Z: Enhanced Cost-Efficiency and Storage Stability
Roto Z delivers superior cost-effectiveness by doubling drain intervals compared to conventional lubricants, significantly reducing maintenance frequency and operational costs. Furthermore, it incorporates the functional properties of a preservative mineral oil, enabling extended on-site storage for several months without compromising performance or stability.
| Features | Benefits | |
| Excellent anti-wear properties | Roto Z contains proven anti-wear additives to be effective throughout the range of operating conditions. | This load carrying capacity is particularly important because oil-free compressors are driven by gears, requiring oils with antiwear properties reducing gear teeth and bearing wear. |
| Thermal stability | Roto Z is thermally stable in severe conditions of load and temperature. | The oil has a high resistance to degradation and sludging. |
| Oxidation resistance | The good oxidation control minimizes the formation of aggressive corrosive acids, deposits and sludge. | This oxidation resistance will reduce your operating costs. |
| High viscosity index | Oil viscosity remains at amore stable level, even at high temperatures. This means lubricating efficiency is maintained under varying conditions. | Keeps working hard, whatever the conditions, even at high operating temperature. Increases the bearing lifetime and reduces the general danger in the oil circuit. |
Lubricant characteristics
Appearance: Light brown
| Performance | Method | Unit | Value |
| Density at 15°C | ISO 3675 | kg/dm3 | 0,860 |
| Viscosity at 40°C | ASTM D 445 | mm2/s | 68 |
| Viscosity index | ASTM D 2270 | 133 | |
| Foam stability | ASTM D 892 | ml | 0/0/0 |
| Total acid number | ASTM D 974 | mg KOH/g | 0,18 |
| Rust test | ASTM D665B | Pass | |
| Pour point | ASTM D 97 | °C | -30 |
Production Characteristics & Compliance Statement
The characteristics described herein are representative of current production batches. While future production will strictly adhere to Atlas Copco specifications, minor variations in these properties may occur. This product fully complies with ISO 6743/3/1A, Class L-DAH standards.
ID Card
| Roto Z Fluid | |
| Oil type | Mineral based oil with tailored additive pack |
| Service intervals | All conditions
8 000 h<55kW 16 000 h>55kW |
| Environment | Ambient temperature range at 0°Cto 50°C |
| Equipment | Atlas Copco oil-free screws |
| Compatibility | ZR- ZS – ZT- ZA- ZE compressors |

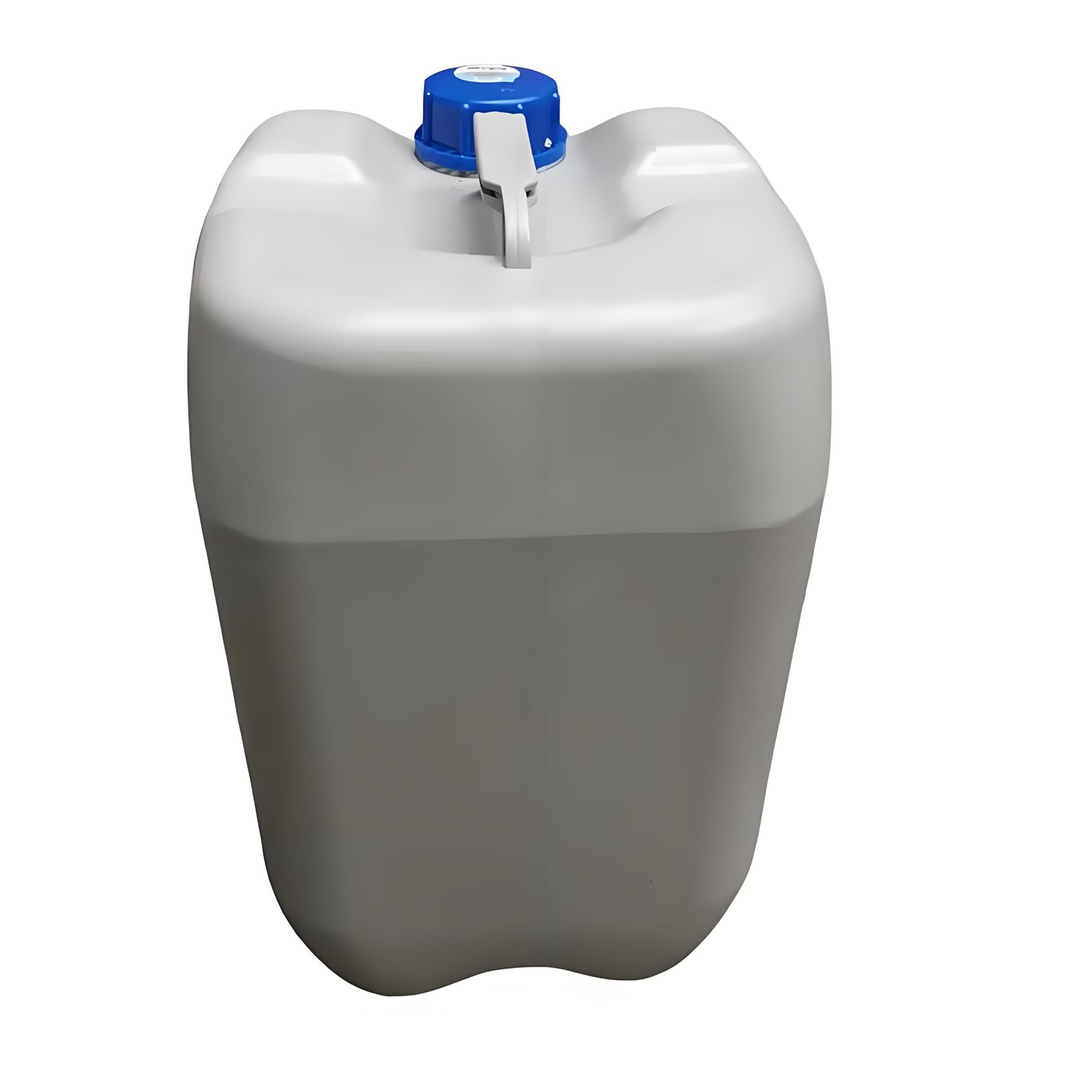

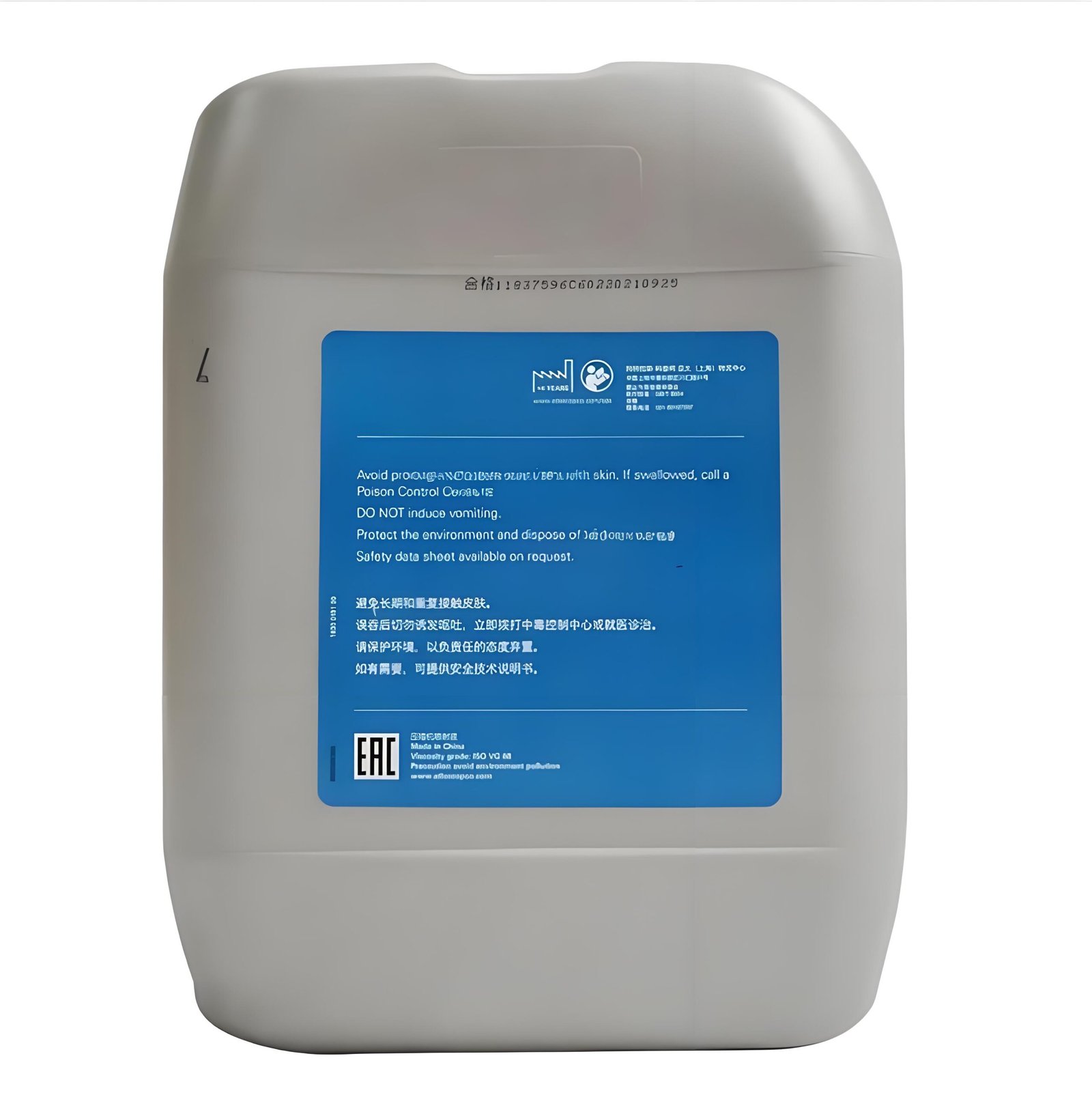

| Capacity (ID) | 5 I plastic can (2908 8503 00)
20 I plastic can (2908 8501 01) 209 I metal drum (2908 8500 00) |
